点击图片查看原图
件 库存1000件
通过认证

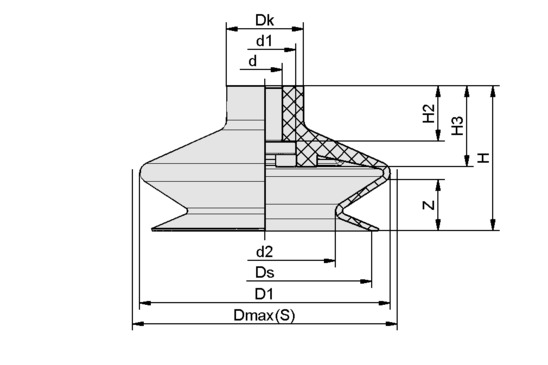

| Attribute | Value |
|---|---|
| d | 8 mm |
| d1 | 16 mm |
| d2 | 17 mm |
| D1 | 36 mm |
| Dk | 18 mm |
| Dmax(S) | 38 mm |
| Ds | 30 mm |
| H | 27 mm |
| H2 | 13 mm |
| H3 | 14 mm |
| Z (Stroke) | 9 mm |
| Attribute | Value |
|---|---|
| Number of folds | 1.5 |
| Suction force | 13.6 N |
| Size | 33 |
| Suction cup material | Natural Rubber NK |
| Weight | 7 g |
| Curve radius (min) (convex) | 40 mm |
| Product family | TGA |
