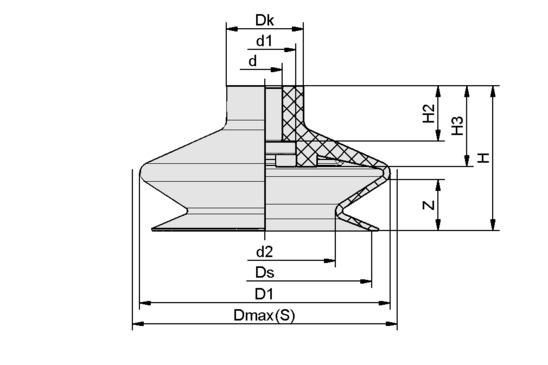

| Attribute | Value |
|---|---|
| d | 8 mm |
| d1 | 14.5 mm |
| d2 | 21.9 mm |
| D1 | 45.9 mm |
| Dk | 18 mm |
| Dmax(S) | 47.5 mm |
| Ds | 38 mm |
| H | 27.6 mm |
| H2 | 13 mm |
| H3 | 17.1 mm |
| Z (Stroke) | 10 mm |
| Attribute | Value |
|---|---|
| Number of folds | 1.5 |
| Suction force | 22.8 N |
| Size | 43 |
| Suction cup material | Natural Rubber NK |
| Weight | 10 g |
| Curve radius (min) (convex) | 60 mm |
| Product family | TGA |
