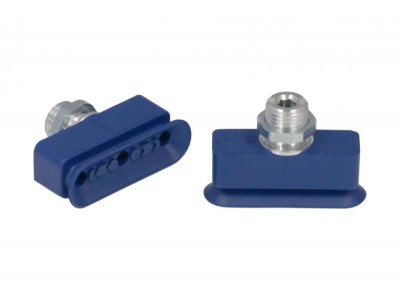

MAOF50*16-NBR-60-G1/4-AG金属薄板专用扁平椭圆真空吸盘，产品编码为100984，适用于搬运油性金属薄板和汽车车身零部件。
| Attribute |
Value |

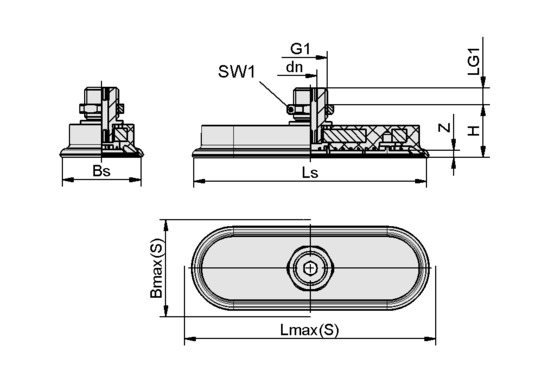

| Bmax(S) |
18 mm |
| Bs |
14.6 mm |
| dn |
5 mm |
| G1 |
G1/4"-AG |
| H |
26 mm |
| LG1 |
8 mm |
| Lmax(S) |
52 mm |
| Ls |
48.6 mm |
| SW1 |
17 mm |
| Z (Stroke) |
3 mm |
| Attribute |
Value |
| Suction force |
31 N |
| Lateral force |
24 N |
| Lateral force (oily surface) |
12 N |
| Volume |
2.27 cm³ |
| Curve radius (min) (convex) |
7.5 mm |
| Hose diameter (empf.) d |
4 mm |
| Dimensions (LxB) |
50 x 16 |
| Number of folds |
0 |
| Suction cup material |
Nitrile rubber NBR |
| Material hardness [Shore A] |
60 |
| Weight |
24 g |
| Product family |
MAOF |
