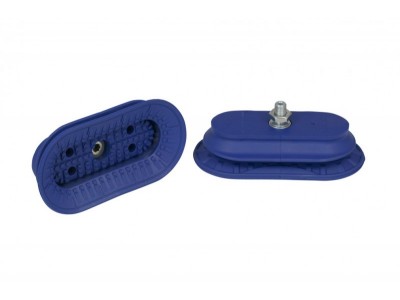

MAOB140*70-NBR-60-M10*1.5-AG 金属薄板专用1.5折椭圆波纹真空吸盘。产品编码为101089，适用于搬运油性金属薄板和汽车车身零部件。

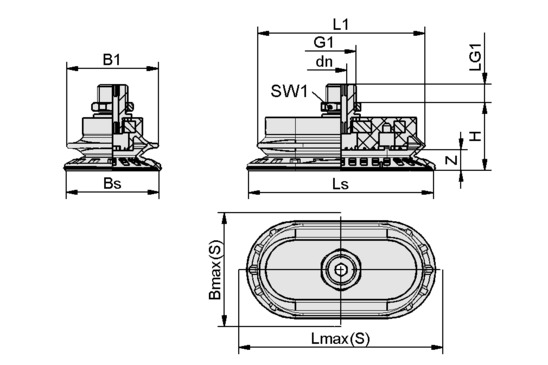

| Attribute |
Value |
| B1 |
67 mm |
| Bmax(S) |
75 mm |
| Bs |
70.1 mm |
| dn |
4 mm |
| G1 |
M10*1.5-AG |
| H |
39.5 mm |
| L1 |
126 mm |
| LG1 |
10 mm |
| Lmax(S) |
146 mm |
| Ls |
141.1 mm |
| SW1 |
17 mm |
| Z (Stroke) |
16.5 mm |
| Attribute |
Value |
| Suction force |
165 N |
| Pull-off force |
355.2 N |
| Lateral force |
472.7 N |
| Lateral force (oily surface) |
245.6 N |
| Volume |
106 cm³ |
| Curve radius (min) (convex) |
70 mm |
| Hose diameter (empf.) d |
6 mm |
| Dimensions (LxB) |
140 x 70 |
| Suction cup material |
Nitrile rubber NBR |
| Material hardness [Shore A] |
60 |
| Number of folds |
1.5 |
| Weight |
120.7 g |
| Product family |
MAOB |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
