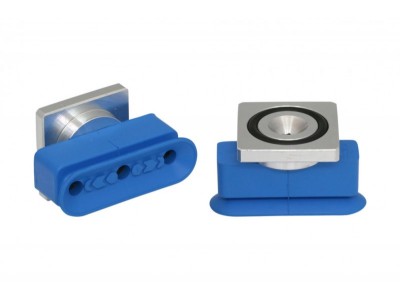

| Attribute | Value |
|---|---|
| Bmax(S) | 18 mm |
| Bs | 14.6 mm |
| dn | 4 mm |
| H | 29 mm |
| L4 | 32 mm |
| Lmax(S) | 52 mm |
| Ls | 48.6 mm |
| Z (Stroke) | 3 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 External dimension of the suction cup when it is pressed against the workpiece by the vacuum
| Attribute | Value |
|---|---|
| Suction force | 31 N |
| Lateral force | 24 N |
| Lateral force (oily surface) | 12 N |
| Volume | 2.27 cm³ |
| Curve radius (min) (convex) | 7.5 mm |
| Hose diameter (empf.) d | 4 mm |
| Dimensions (LxB) | 50 x 16 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 |
| Weight | 34 g |
| Product family | MAOF |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
