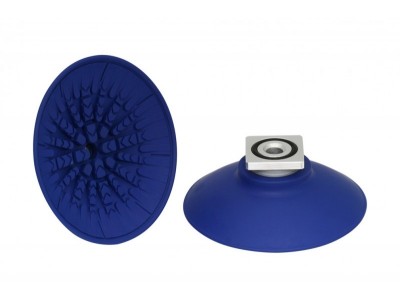

| Attribute | Value |
|---|---|
| dn | 6 mm |
| Dmax(S) | 110 mm |
| Ds | 103 mm |
| H | 35.5 mm |
| L4 | 31.8 mm |
| SW1 | 22 mm |
| Z (Stroke) | 9.5 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 External dimension of the suction cup when it is pressed against the workpiece by the vacuum
| Attribute | Value |
|---|---|
| Suction force | 430 N |
| Lateral force | 310 N |
| Lateral force (oily surface) | 300 N |
| Volume | 59.9 cm³ |
| Curve radius (min) (convex) | 135 mm |
| Hose diameter (empf.) d | 6 mm |
| Size | 100 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 |
| Weight | 76.4 g |
| Number of folds | 0 |
| Product family | MA |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
