点击图片查看原图
件 库存1000件

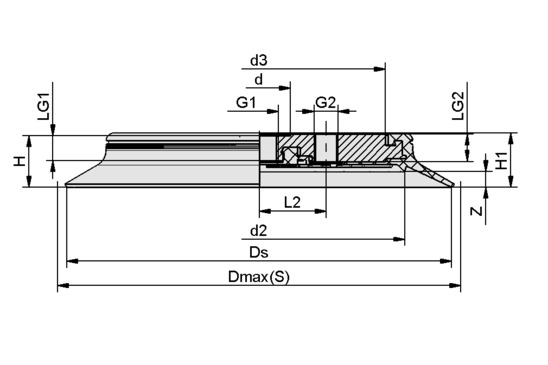

| Attribute | Value |
|---|---|
| d | 34 mm |
| d2 | 113 mm |
| d3 | 88 mm |
| Dmax(S) | 170 mm |
| Ds | 160 mm |
| G1 | G1/2"-IG |
| G2 | G1/4"-IG |
| H | 25 mm |
| H1 | 26.5 mm |
| L2 | 36.5 mm |
| LG1 | 13.5 mm |
| LG2 | 15 mm |
| Z (Stroke) | 7 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 1,090 N |
| Suction force d2 | 600 N |
| Volume | 142 cm³ |
| Curve radius (min) (convex) | 350 mm |
| Hose diameter (empf.) d | 12 mm |
| Size | 160 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 400 g |
| Number of folds | 0 |
| Product family | BCS |
