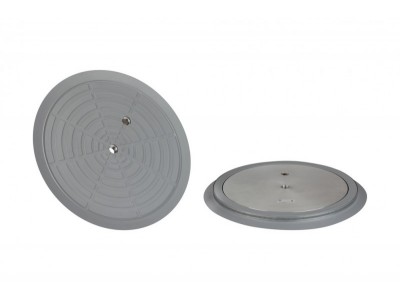

BCS400-NBR-55-G1/2-IG板材专用真空吸盘，产品编码为102199，适用于搬运表面光滑平整的工件

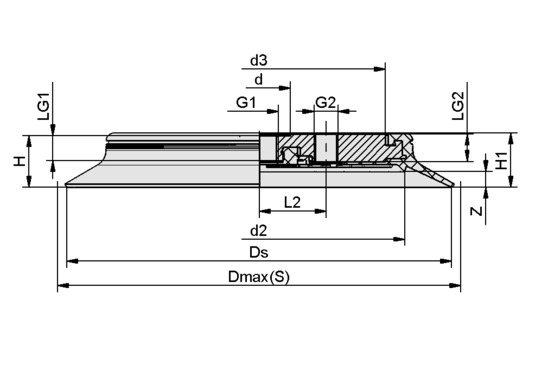

| Attribute | Value |
|---|---|
| d2 | 349 mm |
| d3 | 315 mm |
| Dmax(S) | 430 mm |
| Ds | 400 mm |
| G1 | G1/2"-IG |
| G2 | G1/2"-IG |
| H | 28.5 mm |
| H1 | 29 mm |
| L2 | 86 mm |
| LG1 | 15.5 mm |
| LG2 | 17 mm |
| Z (Stroke) | 6 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 6,780 N |
| Suction force d2 | 5,870 N |
| Volume | 890 cm³ |
| Curve radius (min) (convex) | 6,500 mm |
| Hose diameter (empf.) d | 12 mm |
| Size | 400 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 3,900 g |
| Number of folds | 0 |
| Product family | BCS |
