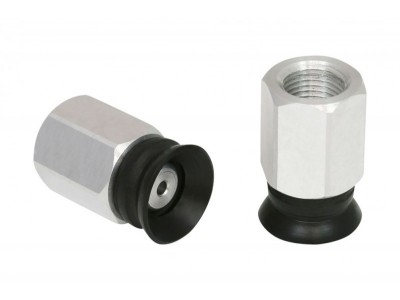

PFTN15-FPM-65-G1/8-IG圆形真空吸盘，产品编码为100100，适用于多种工件搬运作业的真空吸盘。

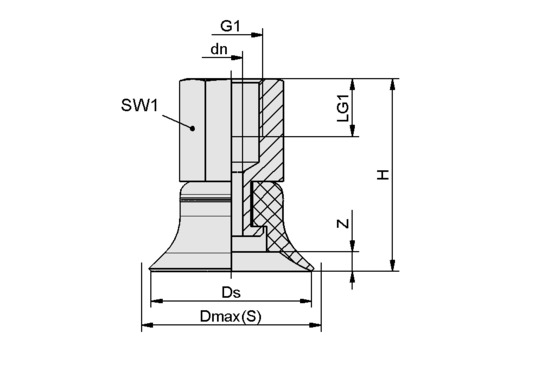

| Attribute | Value |
|---|---|
| dn | 2 mm |
| Dmax(S) | 17.5 mm |
| Ds | 15 mm |
| G1 | G1/8"-IG |
| H | 24 mm |
| LG1 | 9 mm |
| SW1 | 14 mm |
| Z (Stroke) | 1.9 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 9 N |
| Volume | 0.4 cm³ |
| Curve radius (min) (convex) | 12.5 mm |
| Hose diameter (empf.) d | 4 mm |
| Size | 15 |
| Number of folds | 0 |
| Suction cup material | Fluorocaoutchuc FPM |
| Material hardness [Shore A] | 65 |
| Weight | 7 g |
| Product family | PFTN |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
