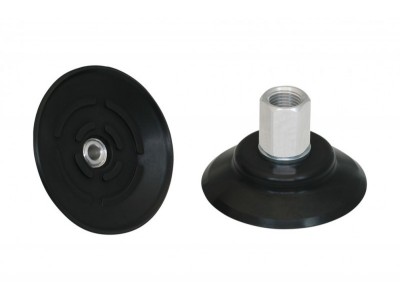

PFTN60-FPM-65-G1/4-IG圆形真空吸盘，产品编码为100223，适用于多种工件搬运作业的真空吸盘。

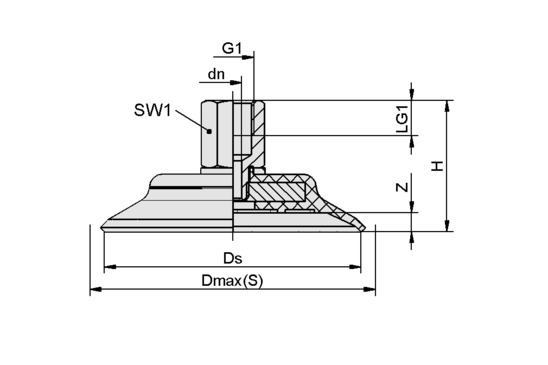

| Attribute | Value |
|---|---|
| dn | 5.5 mm |
| Dmax(S) | 64 mm |
| Ds | 60 mm |
| G1 | G1/4"-IG |
| H | 39 mm |
| LG1 | 11 mm |
| SW1 | 17 mm |
| Z (Stroke) | 4.7 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 125 N |
| Volume | 10 cm³ |
| Curve radius (min) (convex) | 100 mm |
| Hose diameter (empf.) d | 6 mm |
| Size | 60 |
| Number of folds | 0 |
| Suction cup material | Fluorocaoutchuc FPM |
| Material hardness [Shore A] | 65 |
| Weight | 44.3 g |
| Product family | PFTN |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
