PFTN8.0-HT1-60-M5-AG圆形真空吸盘，产品编码为100042，适用于多种工件搬运作业的真空吸盘。

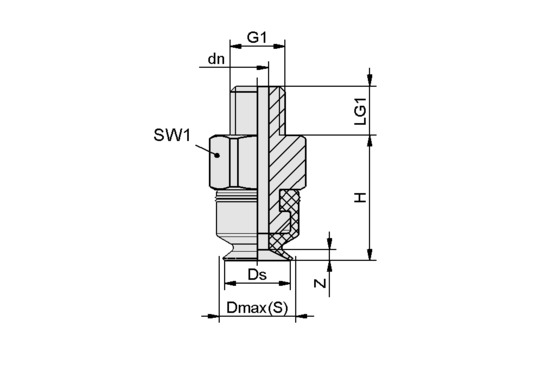

| Attribute | Value |
|---|---|
| dn | 2 mm |
| Dmax(S) | 9 mm |
| Ds | 8 mm |
| G1 | M5-AG |
| H | 12 mm |
| LG1 | 4.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 1.3 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 2.3 N |
| Volume | 0.03 cm³ |
| Curve radius (min) (convex) | 10 mm |
| Hose diameter (empf.) d | 2 mm |
| Size | 8 |
| Number of folds | 0 |
| Suction cup material | High temp material HT1 |
| Material hardness [Shore A] | 60 |
| Weight | 1.2 g |
| Product family | PFTN |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
