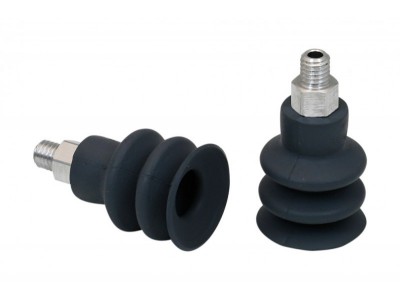

| Attribute | Value |
|---|---|
| d2 | 8 mm |
| dn | 2.5 mm |
| Dmax(S) | 19 mm |
| Ds | 17.2 mm |
| G1 | M5-AG |
| H | 27.6 mm |
| LG1 | 5 mm |
| SW1 | 7 mm |
| Z (Stroke) | 9 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 3.02 N |
| Pull-off force | 8.5 N |
| Volume | 1.35 cm³ |
| Curve radius (min) (convex) | 20 mm |
| Hose diameter (empf.) d | 2 mm |
| Size | 18 |
| Number of folds | 2.5 |
| Suction cup material | Natural Rubber NK |
| Material hardness [Shore A] | 45 |
| Weight | 2.9 g |
| Product family | TGBS |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
