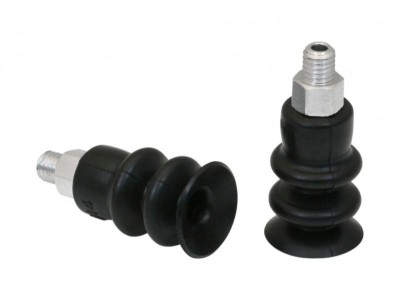

TGBS14-NBR-55-M5-AG 2.5折丁腈橡胶圆形波纹吸盘，产品编码为100710，适用于搬运易损型工件
portant;">
| Attribute | Value |
|---|---|
| d2 | 5.4 mm |
| dn | 2.5 mm |
| Dmax(S) | 15.5 mm |
| Ds | 14.5 mm |
| G1 | M5-AG |
| H | 27.8 mm |
| LG1 | 5 mm |
| SW1 | 7 mm |
| Z (Stroke) | 9 mm |
portant;">Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
portant;">
| Attribute | Value |
|---|---|
| Suction force | 1.37 N |
| Pull-off force | 5.7 N |
| Volume | 0.975 cm³ |
| Curve radius (min) (convex) | 15 mm |
| Hose diameter (empf.) d | 2 mm |
| Size | 14 |
| Number of folds | 2.5 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 2.6 g |
| Product family | TGBS |
portant;">Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
