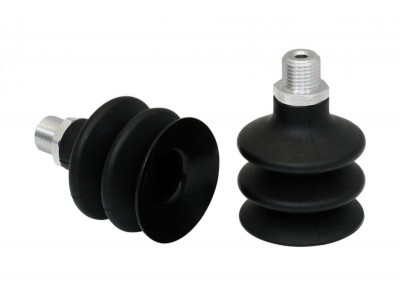

| Attribute | Value |
|---|---|
| d2 | 17.8 mm |
| dn | 4.4 mm |
| Dmax(S) | 45 mm |
| Ds | 42.6 mm |
| G1 | G1/4"-AG |
| H | 50 mm |
| LG1 | 11 mm |
| SW1 | 17 mm |
| Z (Stroke) | 20 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 14.93 N |
| Pull-off force | 44 N |
| Volume | 19.786 cm³ |
| Curve radius (min) (convex) | 75 mm |
| Hose diameter (empf.) d | 6 mm |
| Size | 42 |
| Number of folds | 2.5 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 27 g |
| Product family | TGBS |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
