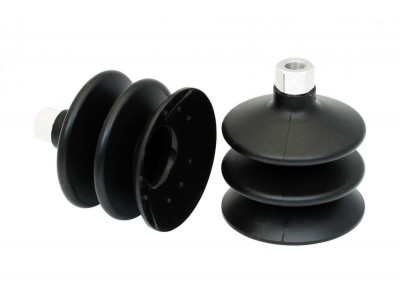

| Attribute | Value |
|---|---|
| d2 | 29.3 mm |
| dn | 8.2 mm |
| Dmax(S) | 95.5 mm |
| Ds | 89 mm |
| G1 | G1/4"-IG |
| H | 101.5 mm |
| LG1 | 12 mm |
| SW1 | 21 mm |
| Z (Stroke) | 34 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 40.46 N |
| Pull-off force | 286 N |
| Volume | 143.668 cm³ |
| Curve radius (min) (convex) | 100 mm |
| Hose diameter (empf.) d | 9 mm |
| Size | 88 |
| Number of folds | 2.5 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 180 g |
| Product family | TGBS |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
