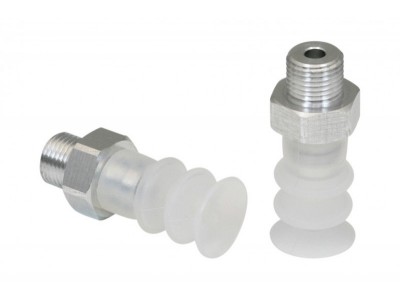

TGBS14-SI-55-G1/8-AG 2.5折硅橡胶圆形波纹吸盘

点击图片查看原图

收藏商品

起批	1-10件	11-50件	50件以上
价格	￥41.00	￥32.80	￥20.50

销量：	累计出售 0 件
评价：	已有 0 条评价
人气：	已有 29 人关注
更新：	2018-11-14
数量：	件库存1000件

联系信息

[诚信档案]
在线联系
会员 [当前离线] [加为商友] [发送信件]
邮件
电话
手机18925205202
地址深圳市龙岗区五联利源工业区

商品详情
评价详情(0)
交易记录(0)

吸盘直径：14mm
吸盘材料：硅橡胶
接头类型：G1/8外螺纹
产品编码：100703

TGBS14-SI-55-G1/8-AG 2.5折硅橡胶圆形波纹吸盘，产品编码为100703，适用于搬运易损型工件 FSG 14 SI-55 G1/8-AG

Attribute	Value
d2	5.4 mm
dn	3.5 mm
Dmax(S)	15.5 mm
Ds	14.5 mm
G1	G1/8"-AG
H	28.8 mm
LG1	7.5 mm
SW1	14 mm
Z (Stroke)	9 mm

Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3

Attribute	Value
Suction force	1.37 N
Pull-off force	5.7 N
Volume	0.975 cm³
Curve radius (min) (convex)	15 mm
Hose diameter (empf.) d	4 mm
Size	14
Number of folds	2.5
Suction cup material	Silicone SI
Material hardness [Shore A]	55
Weight	5.3 g
Product family	TGBS

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
