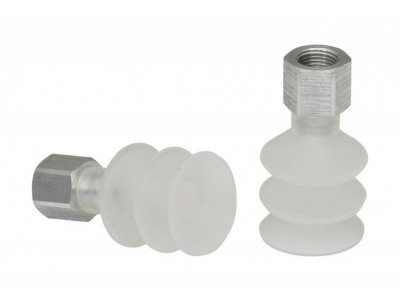

| Attribute | Value |
|---|---|
| d2 | 10 mm |
| dn | 3.5 mm |
| Dmax(S) | 26 mm |
| Ds | 23 mm |
| G1 | G1/8"-IG |
| H | 46 mm |
| LG1 | 8 mm |
| SW1 | 14 mm |
| Z (Stroke) | 18 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 4.71 N |
| Pull-off force | 19 N |
| Volume | 5.222 cm³ |
| Curve radius (min) (convex) | 30 mm |
| Hose diameter (empf.) d | 4 mm |
| Size | 25 |
| Number of folds | 2.5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 |
| Weight | 9 g |
| Product family | TGBS |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
