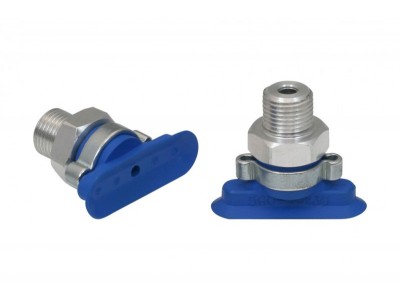

| Attribute | Value |
|---|---|
| Bmax(S) | 11.5 mm |
| Bs | 9.4 mm |
| dn | 2.5 mm |
| G1 | G1/8"-AG |
| H | 17 mm |
| LG1 | 8 mm |
| Lmax(S) | 30.5 mm |
| Ls | 29.4 mm |
| SW1 | 14 mm |
| Z (Stroke) | 1.5 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 12.2 N |
| Volume | 0.516 cm³ |
| Curve radius (min) (convex) | 7.5 mm |
| Hose diameter (empf.) d | 4 mm |
| Dimensions (LxB) | 30 x 10 |
| Number of folds | 0 |
| Suction cup material | High temp material HT1 |
| Material hardness [Shore A] | 60 |
| Weight | 6.8 g |
| Product family | TEWN |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
