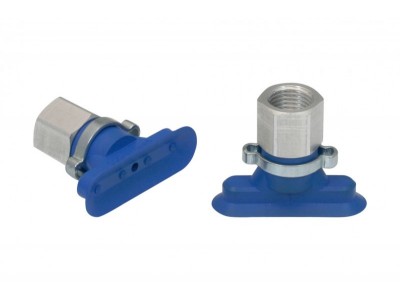

| Attribute | Value |
|---|---|
| Bmax(S) | 16.5 mm |
| Bs | 14.4 mm |
| dn | 3 mm |
| G1 | G1/4"-IG |
| H | 36 mm |
| LG1 | 12 mm |
| Lmax(S) | 46 mm |
| Ls | 44.4 mm |
| SW1 | 17 mm |
| Z (Stroke) | 2 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 28.2 N |
| Volume | 2.306 cm³ |
| Curve radius (min) (convex) | 10 mm |
| Hose diameter (empf.) d | 6 mm |
| Dimensions (LxB) | 45 x 15 |
| Number of folds | 0 |
| Suction cup material | High temp material HT1 |
| Material hardness [Shore A] | 60 |
| Weight | 14.3 g |
| Product family | TEWN |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
