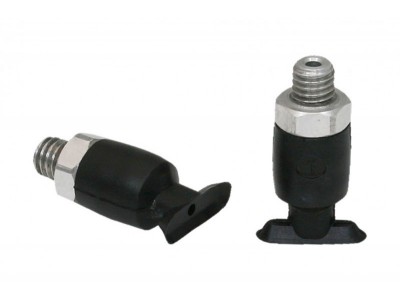

| Attribute | Value |
|---|---|
| Bmax(S) | 5 mm |
| Bs | 3.9 mm |
| dn | 1.5 mm |
| G1 | M5-AG |
| H | 18 mm |
| LG1 | 4.5 mm |
| Lmax(S) | 13 mm |
| Ls | 11.9 mm |
| SW1 | 8 mm |
| Z (Stroke) | 0.5 mm |
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
| Attribute | Value |
|---|---|
| Suction force | 1.8 N |
| Volume | 0.173 cm³ |
| Curve radius (min) (convex) | 3 mm |
| Hose diameter (empf.) d | 2 mm |
| Dimensions (LxB) | 12 x 4 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR-antistat |
| Material hardness [Shore A] | 55 |
| Weight | 2.9 g |
| Product family | TEWN |
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
