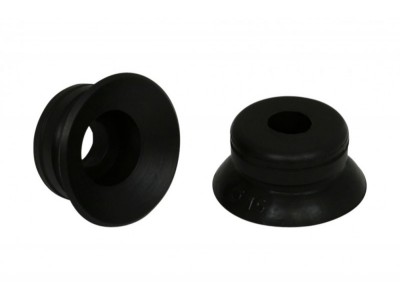

PF20-FPM-65圆形真空吸盘，产品编码为100109，适用于多种工件搬运作业的真空吸盘。
| Attribute | Value |
|---|---|
| d | 4.5 mm |
| d1 | 11 mm |
| Dk | 15.2 mm |
| Dmax(S) | 23 mm |
| Ds | 20 mm |
| H | 10 mm |
| H2 | 4.5 mm |
| Z (Stroke) | 2.2 mm |
| Attribute | Value |
|---|---|
| Suction force | 15.5 N |
| Volume | 0.864 cm³ |
| Curve radius (min) (convex) | 20 mm |
| Size | 20 |
| Nipple family | N 006 |
| Number of folds | 0 |
| Suction cup material | Fluorocaoutchuc FPM |
| Material hardness [Shore A] | 65 |
| Weight | 2.5 g |
| Product family | PF |
