点击图片查看原图
件 库存1000件
通过认证

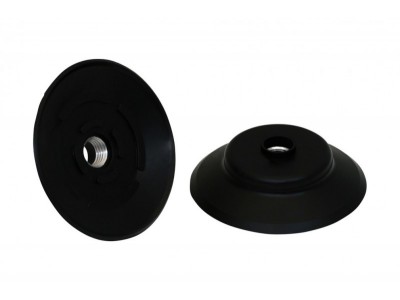

PF60-NBR-55圆形真空吸盘，产品编码为100220，适用于多种工件搬运作业的真空吸盘。
| Attribute | Value |
|---|---|
| Dk | 38,7 mm |
| Dmax(S) | 64,0 mm |
| Ds | 60,0 mm |
| H | 18,00 mm |
| Z (Stroke) | 4,7 mm |
| Attribute | Value |
|---|---|
| Suction force | 125 N |
| Volume | 11.846 cm³ |
| Curve radius (min) (convex) | 100 mm |
| Size | 60 |
| Nipple family | N 009 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 24.6 g |
| Product family | PF |
