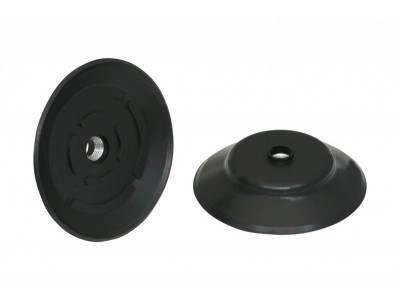

PF95-NBR-55圆形真空吸盘，产品编码为100248，适用于多种工件搬运作业的真空吸盘。

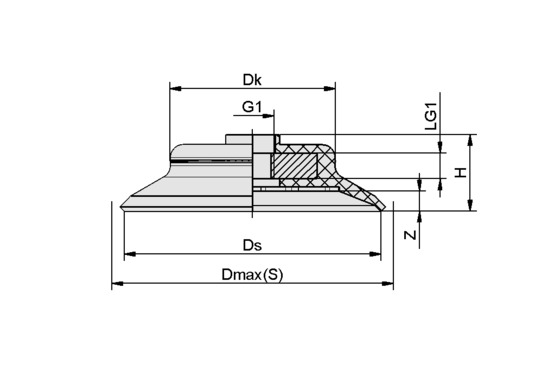

| Attribute | Value |
|---|---|
| Dk | 68.2 mm |
| Dmax(S) | 102 mm |
| Ds | 95 mm |
| H | 19 mm |
| Z (Stroke) | 6 mm |
| Attribute | Value |
|---|---|
| Suction force | 350 N |
| Volume | 37.087 cm³ |
| Curve radius (min) (convex) | 200 mm |
| Size | 95 |
| Nipple family | N 009 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 |
| Weight | 92.8 g |
| Product family | PF |
