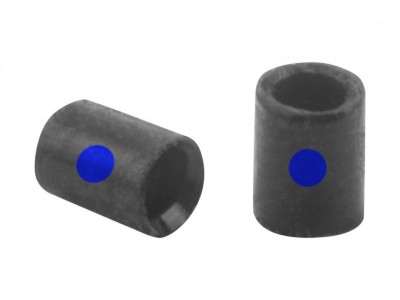

PF1-NBR-AS-55抗静电真空吸盘，产品编码为100272，适用于多种工件搬运作业的真空吸盘。

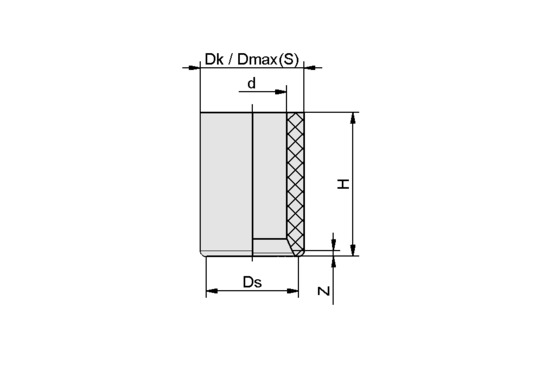

| Attribute | Value |
|---|---|
| d | 0.8 mm |
| Dk | 1.2 mm |
| Dmax(S) | 1.2 mm |
| Ds | 1 mm |
| H | 1.6 mm |
| Z (Stroke) | 0.1 mm |
| Attribute | Value |
|---|---|
| Suction force | 0.03 N |
| Volume | 0.001 cm³ |
| Curve radius (min) (convex) | 2 mm |
| Size | 1 |
| Nipple family | N 001 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR-antistat |
| Material hardness [Shore A] | 55 |
| Weight | 0.1 g |
| Product family | PF |
