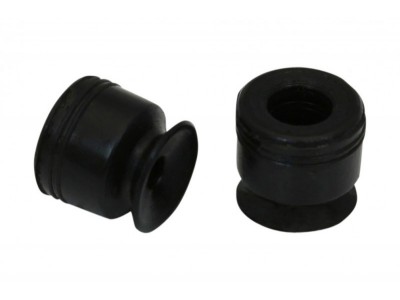

PF3.5-NBR-AS-55抗静电圆形真空吸盘,产品编码为100283,适用于多种工件搬运作业的真空吸盘。

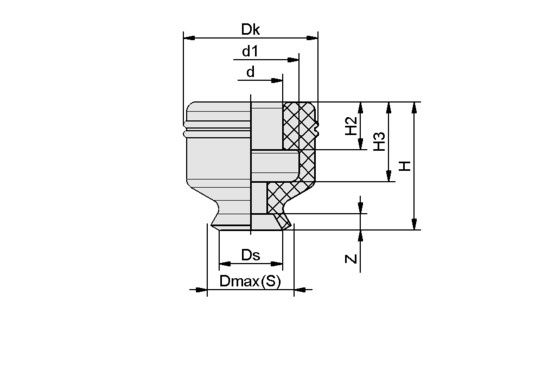

Attribute | Value |
---|---|
d | 2 mm |
d1 | 3 mm |
Dk | 4.2 mm |
Dmax(S) | 4 mm |
Ds | 3.5 mm |
H | 4 mm |
H2 | 1.5 mm |
Z (Stroke) | 0.5 mm |
Attribute | Value |
---|---|
Suction force | 0.42 N |
Volume | 0.015 cm³ |
Curve radius (min) (convex) | 7.5 mm |
Size | 3.5 |
Nipple family | N 003 |
Number of folds | 0 |
Suction cup material | Nitrile rubber NBR-antistat |
Material hardness [Shore A] | 55 |
Product family | PF |
