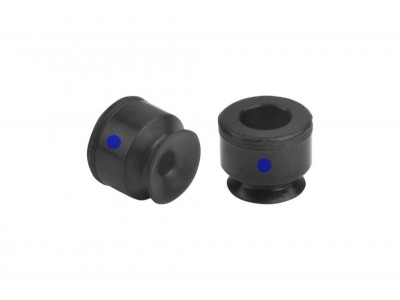

PF6-NBR-AS-55抗静电圆形真空吸盘，产品编码为100295，适用于多种工件搬运作业的真空吸盘。

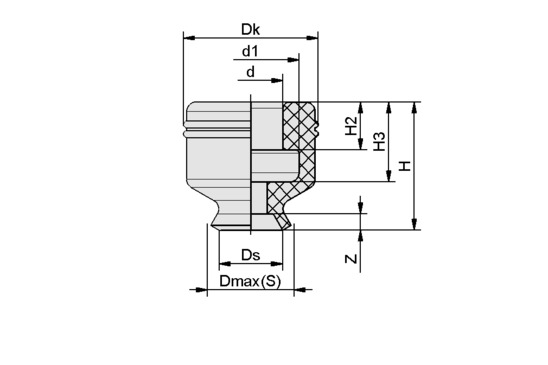

| Attribute | Value |
|---|---|
| d | 4 mm |
| d1 | 6 mm |
| Dk | 7.7 mm |
| Dmax(S) | 6.5 mm |
| Ds | 6 mm |
| H | 6.5 mm |
| H2 | 2 mm |
| Z (Stroke) | 1 mm |
| Attribute | Value |
|---|---|
| Suction force | 1.2 N |
| Volume | 0.1 cm³ |
| Curve radius (min) (convex) | 7.5 mm |
| Size | 6 |
| Nipple family | N 004 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR-antistat |
| Material hardness [Shore A] | 55 |
| Weight | 0.2 g |
| Product family | PF |
