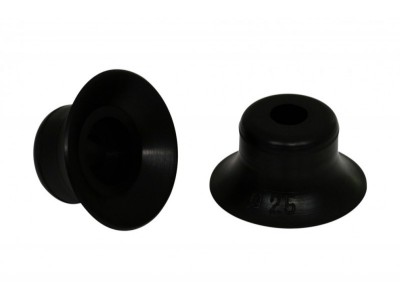

PF25-NBR-AS-55抗静电圆形真空吸盘，产品编码为100132，适用于多种工件搬运作业的真空吸盘。
| Attribute | Value |
|---|---|
| d | 6 mm |
| d1 | 11 mm |
| Dk | 16.2 mm |
| Dmax(S) | 27.5 mm |
| Ds | 25 mm |
| H | 14 mm |
| H2 | 7 mm |
| Z (Stroke) | 3 mm |
| Attribute | Value |
|---|---|
| Suction force | 26.5 N |
| Volume | 1.483 cm³ |
| Curve radius (min) (convex) | 25 mm |
| Size | 25 |
| Nipple family | N 007 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR-antistat |
| Material hardness [Shore A] | 55 |
| Weight | 2.4 g |
| Product family | PF |
