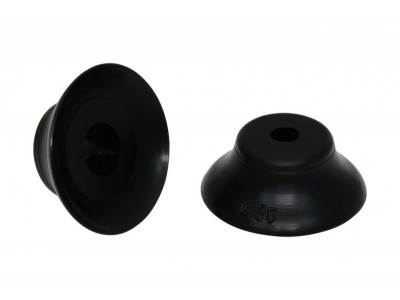

PF35-NBR-AS-55抗静电圆形真空吸盘，产品编码为100168，适用于多种工件搬运作业的真空吸盘。
| Attribute | Value |
|---|---|
| d | 6 mm |
| d1 | 11 mm |
| Dk | 20.5 mm |
| Dmax(S) | 38 mm |
| Ds | 35 mm |
| H | 14 mm |
| H2 | 7 mm |
| Z (Stroke) | 3 mm |
| Attribute | Value |
|---|---|
| Suction force | 44 N |
| Volume | 2.805 cm³ |
| Curve radius (min) (convex) | 50 mm |
| Size | 35 |
| Nipple family | N 007 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR-antistat |
| Material hardness [Shore A] | 55 |
| Weight | 5.7 g |
| Product family | PF |
