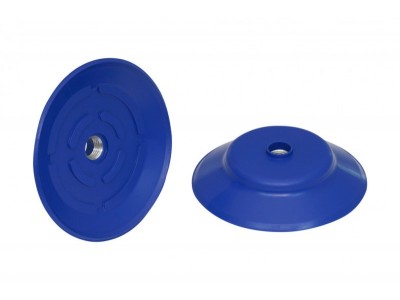

PF80-PU-55圆形真空吸盘，产品编码为100243，适用于多种工件搬运作业的真空吸盘。

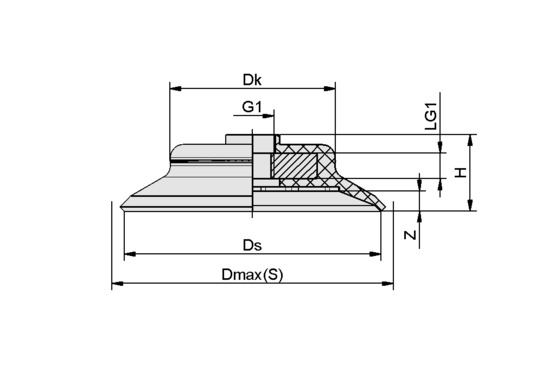

| Attribute | Value |
|---|---|
| Dk | 52.3 mm |
| Dmax(S) | 86 mm |
| Ds | 80 mm |
| H | 20.5 mm |
| Z (Stroke) | 6 mm |
| Attribute | Value |
|---|---|
| Suction force | 260 N |
| Volume | 26.756 cm³ |
| Curve radius (min) (convex) | 150 mm |
| Size | 80 |
| Nipple family | N 009 |
| Number of folds | 0 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 55 |
| Weight | 50.7 g |
| Product family | PF |
