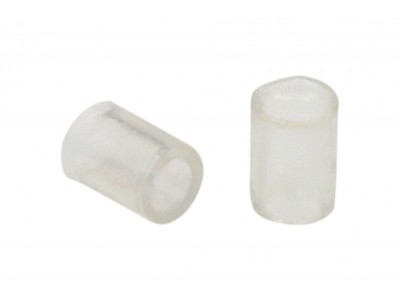

PF1.5-SI-55圆形真空吸盘，产品编码为100276，适用于多种工件搬运作业的真空吸盘。

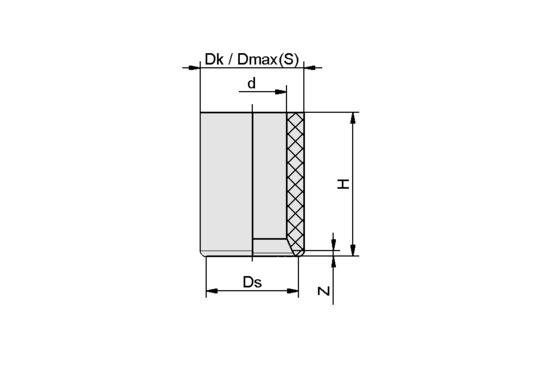

| Attribute | Value |
|---|---|
| d | 1.2 mm |
| Dk | 1.8 mm |
| Dmax(S) | 1.8 mm |
| Ds | 1.5 mm |
| H | 2.5 mm |
| Z (Stroke) | 0.1 mm |
| Attribute | Value |
|---|---|
| Suction force | 0.06 N |
| Volume | 0.003 cm³ |
| Curve radius (min) (convex) | 2 mm |
| Size | 1.5 |
| Nipple family | N 002 |
| Number of folds | 0 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 |
| Weight | 0.1 g |
| Product family | PF |
