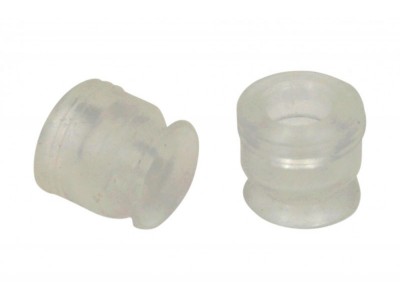

PF3.5-SI-55圆形真空吸盘，产品编码为100284，适用于多种工件搬运作业的真空吸盘。

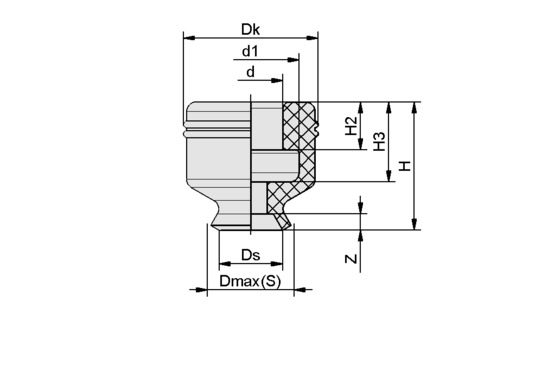

| Attribute | Value |
|---|---|
| d | 2 mm |
| d1 | 3 mm |
| Dk | 4.2 mm |
| Dmax(S) | 4 mm |
| Ds | 3.5 mm |
| H | 4 mm |
| H2 | 1.5 mm |
| Z (Stroke) | 0.5 mm |
| Attribute | Value |
|---|---|
| Suction force | 0.42 N |
| Volume | 0.015 cm³ |
| Curve radius (min) (convex) | 7.5 mm |
| Size | 3.5 |
| Nipple family | N 003 |
| Number of folds | 0 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 |
| Product family | PF |
