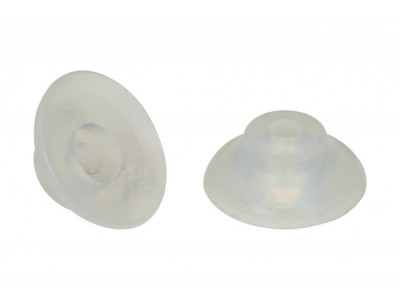

PF30-SI-55圆形真空吸盘，产品编码为100152，适用于多种工件搬运作业的真空吸盘。
portant;">
| Attribute | Value |
|---|---|
| d | 6 mm |
| d1 | 11 mm |
| Dk | 15.1 mm |
| Dmax(S) | 31.5 mm |
| Ds | 28.8 mm |
| H | 12 mm |
| H2 | 7 mm |
| Z (Stroke) | 2 mm |
portant;">
| Attribute | Value |
|---|---|
| Suction force | 34 N |
| Volume | 1.556 cm³ |
| Curve radius (min) (convex) | 40 mm |
| Size | 30 |
| Nipple family | N 007 |
| Number of folds | 0 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 |
| Weight | 3 g |
| Product family | PF |
