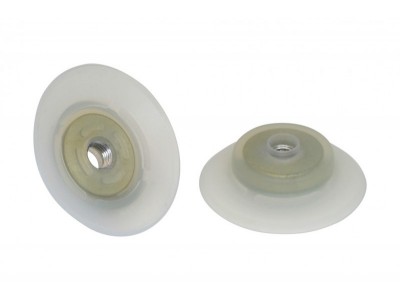

PF60-SI-55圆形真空吸盘，产品编码为100222，适用于多种工件搬运作业的真空吸盘。

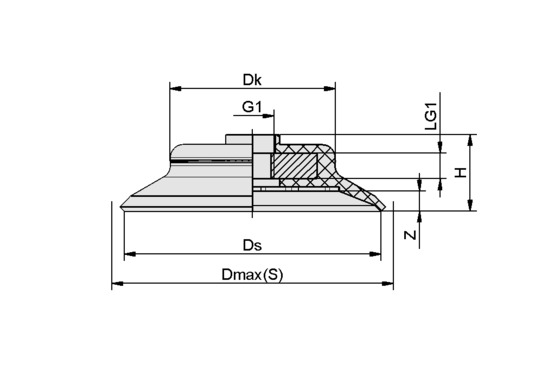

| Attribute | Value |
|---|---|
| Dk | 38.7 mm |
| Dmax(S) | 64 mm |
| Ds | 60 mm |
| H | 18 mm |
| Z (Stroke) | 4.7 mm |
| Attribute | Value |
|---|---|
| Suction force | 125 N |
| Volume | 11.846 cm³ |
| Curve radius (min) (convex) | 100 mm |
| Size | 60 |
| Nipple family | N 009 |
| Number of folds | 0 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 |
| Weight | 23.4 g |
| Product family | PF |
