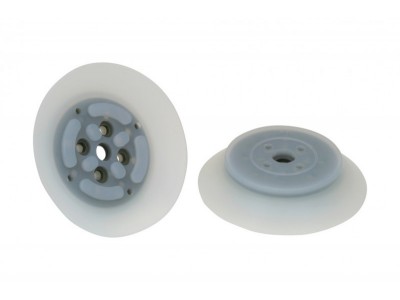

PF150-SI-55圆形真空吸盘，产品编码为100266，适用于多种工件搬运作业的真空吸盘。

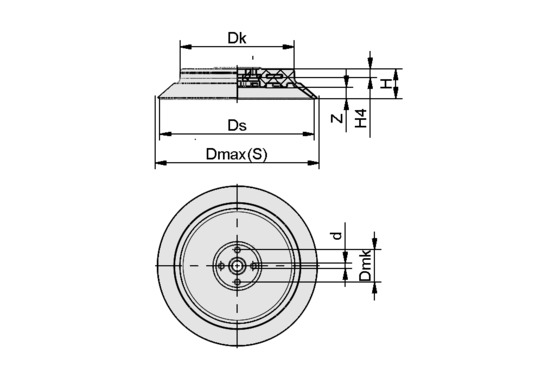

| Attribute | Value |
|---|---|
| d | 7 mm |
| Dk | 104.5 mm |
| Dmax(S) | 158 mm |
| Ds | 147.5 mm |
| H | 31 mm |
| Z (Stroke) | 9 mm |
| Attribute | Value |
|---|---|
| Suction force | 842 N |
| Volume | 164.707 cm³ |
| Curve radius (min) (convex) | 300 mm |
| Size | 150 |
| Nipple family | N 010 |
| Number of folds | 0 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 |
| Weight | 385 g |
| Product family | PF |
