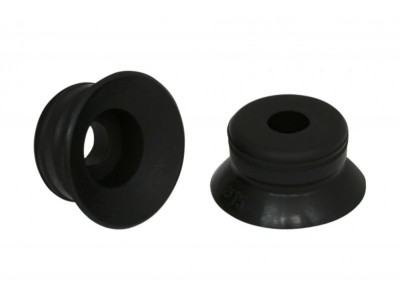

PF15-SI-AS-55抗静电圆形真空吸盘，产品编码为100099，适用于多种工件搬运作业的真空吸盘。
| Attribute | Value |
|---|---|
| d | 4.5 mm |
| d1 | 7.8 mm |
| Dk | 12.2 mm |
| Dmax(S) | 17.5 mm |
| Ds | 15 mm |
| H | 8 mm |
| H2 | 2.6 mm |
| Z (Stroke) | 1.9 mm |
| Attribute | Value |
|---|---|
| Suction force | 9 N |
| Volume | 0.432 cm³ |
| Curve radius (min) (convex) | 12.5 mm |
| Size | 15 |
| Nipple family | N 005 |
| Number of folds | 0 |
| Suction cup material | Silicone SI-antistatisch |
| Material hardness [Shore A] | 55 |
| Weight | 0.7 g |
| Product family | PF |
